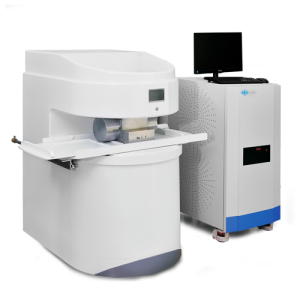

Core NMR And MRI Analyzer MacroMR12-150H-I
Brief Introduction:
- Magnet: permanent (NdBFe); 0.3±0.05T
- Probe size : up to 150mm
- Effective detection area: Ø150mm×H100mm
Product Description:
The MacroMR12-150H-I is an MR analyzer and imaging system for larger size samples, combining outstanding features such as overall design, cavity flexibility, wide-range of applications, convenient handling, analysis and imaging integrated. With rare earth NdFeB permanent magnet and NMdigI spectrometer, MacroMR12 offers high quality images. The large-diameter probe coil can handle sample size up to Ø150 mm.
Applications :
Petroleum and Porous Media
- Exploration and development of low permeability oil field
Movable fluid saturation determination
Pore size distribution of rock
Mechanism of oil displacement
Cracks and micro-cracks evaluation
Mechanism of fracturing process - Exploration and development of Gas field
The influence of overburden pressure on porosity and permeability
Pore size distribution of rock
Mechanism of water flooding
Gas field caverns, cracks and micro-cracks evaluation
Studies on modification mechanism
Free/irreducible fluid saturation - Exploration and development of CBM (Coal Bed Methane)
Porosity
Pore size distribution
Fracture development
Water saturation determination

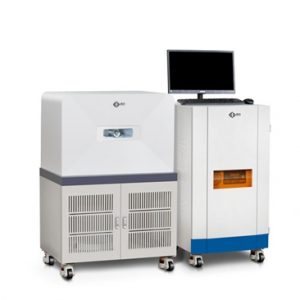

Core NMR and MRI Analyzer MesoMR23-060H-I
Brief Introduction:
- Magnet: permanent,0.5±0.05T
- Effective detection area size up to : Ø60mm×H60mm
Product Description:
MesoMR23-060H-I is a powerful Imaging and Analyzing System equipped with many hardware modules independently-developed by Niumag, such as a Low Temperature-High Pressure System (LTHP) and High Temperature-High Pressure System (HTHP), this makes MesoMR is suitable for research under various temperature and pressure conditions, covering a wide range applications from food and agriculture, life science, polymer materials to geological research and energy exploration. MesoMR is the transformer for MRI System, offering multiple choices for direction of sample introduction, temperature control, pressure control and probe size, can be applied to various temperature and pressure conditions studies.
Applications:
- Exploration and development of low permeability oil field
Movable fluid saturation determination
Pore size distribution of rock
Mechanism of oil displacement
Cracks and micro-cracks evaluation
Mechanism of fracturing process - Exploration and development of Gas field
The influence of overburden pressure on porosity and permeability
Pore size distribution of rock
Mechanism of water flooding
Gas field caverns, cracks and micro-cracks evaluation
Studies on modification mechanism
Free/irreducible fluid saturation - Exploration and development of CBM (Coal Bed Methane)
Porosity
Pore size distribution
Fracture development
Water saturation determination
Features:
- Optional Magnet Direction: Horizontal and vertical
- Easy Installation, Low Maintenance
- Professional Accessories: Equipped with sample carrier, gas anesthesia systems
- Specialized Modules: Simulating various environmental conditions, integrated LTHP/HTHP System
- Advanced Imaging Software: Provide functions including image noise reduction, pseudo color, data extraction, 3D reconstruction etc.
- Easy to use: Optimal parameters automatically, three-steps to obtain imaging

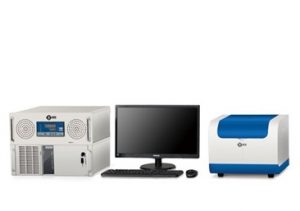

2MHz Core NMR Analyzer MicroMR02-025V
Brief Introduction:
- Magnet type: permanent magnet
- Magnetic field intensity: 0.055 ± 0.01 T
- Effective sample detection area: Ø 25.4mm × H 35mm
Product Description:
The MicroMR02-025V Core NMR analyzer is well designed to test samples with different characteristics and provides you with the most professional and best match analytical solutions. After years of concentrated study, three MicroMR products (2MHz, 5MHz, and 12MHz) can now be provided with optional upgrades to multi-dimensional NMR analyzer with diffusion functions. MicroMR02-025V is the world’s advanced level Benchtop NMR analyzer using a compact body design. It is an advanced level Benchtop NMR analyzer that can be used in petroleum exploration. Advantages: high accuracy, good repeatability, high instrument performance, cost-effective, objective and true measurement results.
Applications:
- 2 MHz NMR analyzer: Conventional core pore structure and fluid saturation
- 1-inch diameter probe coil is specially designed for 1-inch diameter rock, also suitable for rock cuttings
- Low operation frequency; pulse mode
- All-digital spectrometer
- NMR scanning and analyzing software developed independently according to industry standards
- Customized pulse sequence package
- Exportable raw signal data facilitates data post-processing
- Convenient for export of raw data to Excel
- Automatic and manual calibration of operating frequency
- Automatic and manual calibration of pulse length (90 and 180 pulse)
- Professional ICC(Industrial Control Computer) ensures high stability and fast processing speed
- Compact structure and attractive appearance
12MHz Core NMR Analyzer MicroMR12-025V
Brief Introduction:
- Magnet type: permanent magnet
- Magnetic field intensity: 0.28±0.05T
- Effective sample detection area: Ø25.4 mm×H35 mm
Product Description:
The MicroMR12-025V Core NMR analyzer is well designed to test samples with different characteristics and provides you with the most professional and best match analytical solutions. After years of concentrated study, three MicroMR products (2MHz, 5MHz, and 12MHz) can now be provided with optional upgrades to multi-dimensional NMR analyzer with diffusion functions. MicroMR12-025V is the world’s advanced level benchtop NMR analyzer using a compact body design. It is an advanced level benchtop NMR analyzer that can be used in petroleum exploration. Advantages: high accuracy, good repeatability, high instrument performance, cost-effective, objective and true measurement results.
Applications:
- 12MHz NMR analyzer: Unconventional core (dense core, mudstone and shale) pore structure and fluid saturation
- Oil/moisture analysis of larger size materials
- 1-inch diameter probe coil is specially designed for 1-inch diameter rock, also suitable for rock cuttings
- Low operation frequency; pulse mode
- All-digital spectrometer
- NMR scanning and analyzing software developed independently according to industry standards
- Customized pulse sequence package
- Exportable raw signal data facilitates data post-processing
- Convenient for export of raw data to Excel
- Automatic and manual calibration of operating frequency
- Automatic and manual calibration of pulse length (90 and 180 pulse)
- Professional ICC(Industrial Control Computer) ensures high stability and fast processing speed
- Compact structure and attractive appearance.

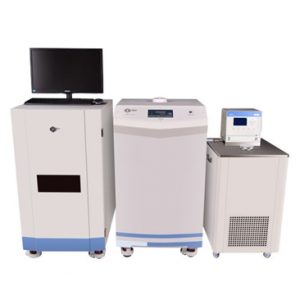

Nanoporosity NMR Analyzer NMRC12-010V
Brief Introduction:
- Magnet : permanent ,0.28 ± 0.05 T
- Effective sample detection area: Ø 10 mm × H 20 mm
- Sample volume：0.5cm3~ 1 cm3
Product Description:
The NMRC12-010V Nanoporosity NMR analyzer was well designed to study the pore structure of porous material. It can be used for measurement and calculation of pore size distribution of the sample, also for the relationship between pore size and solidification temperature of liquid in the pores. Our Nanoporosity NMR analyzer was applied to monitor the liquid phase change material in real-time. The test scope of measurable pore size was in the range of 2nm~500nm. The selected liquid probe has a significant influence on the results.
- Highly precise measurement by using the innovative NMR method
- No signal interference and long working time by using dry gas as the refrigerating medium
- Rapid and stable refrigerating( ultra-low temperature -60℃)
- Rapid heating and accurate temperature control
- Mature NMR system: high magnetic field stability, good magnetic field uniformity, short dead time and high SNR
- Specially designed probe coil for ultra-low temperature, attenuating the heat exchange between the magnets and the sample effectively
- User-friendly Software system, automatic calibration, temperature control, testing, data calculation and graphics output, etc

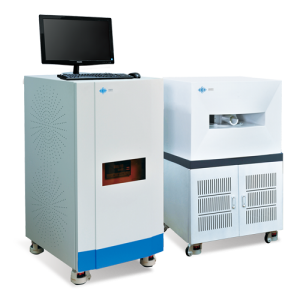

HIGH-PRESSURE, HIGH-TEMPERATURE Displacement Rock Core NMR/MRI System
Brief Introduction:
- Model: MesoMR
- Application: Rock & Core Analysis
Product Description:
MesoMR is a powerful Imaging and Analyzing System equipped with many hardware modules independently-developed by NIUMAG, such as a Low Temperature-High Pressure System (LTHP) and High Temperature-High Pressure System (HTHP), this makes MesoMR suitable for research under various temperatures and pressure conditions, covering a wide range applications from food and agriculture, life science, polymer materials to geological research and energy exploration. MesoMR is the transformer for MRI System, offering multiple choices for directions of sample introduction, temperature control, pressure control and probe size, can be applied to various temperatures and pressure conditions studies.
- Movable fluid saturation determination
- Pore size distribution of rock
- Mechanism of oil displacement
- Cracks and micro-cracks evaluation
- Mechanism of fracturing process
- The influence of overburden pressure on porosity and permeability
- Pore size distribution of rock
- Mechanism of water flooding
- Gas field caverns, cracks and micro-cracks evaluation
- Studies on modification mechanism
- Free/irreducible fluid saturation
- Porosity Model:MesoMR Application:Rock & Core Analysis
- Pore size distribution
- Fracture development
- Water saturation determination
2MHz Rock Core NMR Analyzer Benchtop NMR Device
Brief Introduction:
- Model: MicroMR
- Application: Rock & Core
Product Description:
The MicroMR series: 2MHz Rock Core NMR analyzer is well designed to test samples with different characteristics and provides you with the most professional and best match analytical solutions. After years of concentrated study, the 2MHz MicroMR System now can be provided with optional upgrades to multi-dimensional NMR analyzer with diffusion functions. MicroMR series is the world’s advanced level benchtop NMR analyzer using a compact body design. It is an advanced level benchtop NMR analyzer that can be used in petroleum exploration researches. The MicroMR series has the following advantages: high accuracy, good repeatability, instrument performance, high cost-effective, objective and true measurement results.
Basic Parameters:
- Magnet: permanent magnet 0.055± 0.01T(2MHz)
- Probe: Ø25.4mm
- 1-inch diameter probe coil is specially designed for 1-inch diameter rock, also suitable for rock cuttings
- Low operation frequency; pulse mode
- All-digital spectrometer
- NMR scanning and analyzing software developed independently according to industry standards
- Customized pulse sequence package
- Exportable raw signal data facilitates data post-processing
- Convenient for export of raw data to Excel
- Automatic and manual calibration of operating frequency
- Automatic and manual calibration of pulse length (90 and 180 pulse)
- Professional ICC(Industrial Control Computer) ensures high stability and fast processing speed
- Compact structure and attractive appearance
12MHz Rock Core NMR and MRI System with 1 inch 1.5 inch Probe
Brief Introduction:
- Model: MacroMR
- Application: Rock & Core
- Optional: High T&P
Product Description:
The MacroMR an NMR analyzer and imaging system for larger size samples, combining outstanding features such as overall design, cavity flexibility, wide-range of applications, convenient handling, analysis and imaging integrated. With rare earth NdFeB permanent magnet and NMdigI spectrometer, MacroMR12 offers high quality images. The large-diameter probe coil can handle sample size up to Ø150 mm.
Basic Parameters:
- Magnet: permanent magnet 0.3±0.05T
- Probe: Ø150mm
Applications:
- Movable fluid saturation determination
- Pore size distribution of rock
- Mechanism of oil displacement
- Cracks and micro-cracks evaluation
- Mechanism of fracturing process
- The influence of overburden pressure on porosity and permeability
- Pore size distribution of rock
- Mechanism of water flooding
- Gas field caverns, cracks and micro-cracks evaluation
- Studies on modification mechanism
- Free/irreducible fluid saturation
- Porosity
- Pore size distribution
- Fracture development
- Water saturation determination

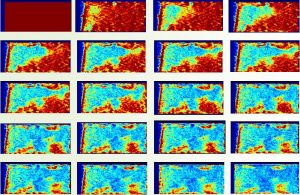

These MR images show that water go into the rock core from left side and water displace the oil process.
